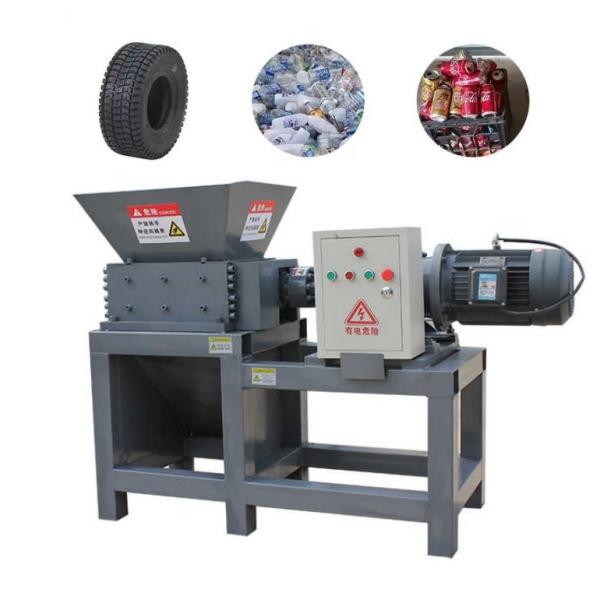

Automatic Crusher Machine Industrial Waste Plastic Double Shaft Shredder
Product description:
The shredding machine is an essential component of the crushing recycling equipment as it efficiently reduces the size of the waste materials, making them easier to handle and process. The shredding machine is also designed to handle a wide range of materials, including glass, plastic, paper, and other materials, making it a versatile tool for recycling processes.
Crushing Recycling Equipment is an important part of waste management as it helps to efficiently process and recycle waste materials. By reducing the size of the waste materials, it makes it easier to handle and process them, which in turn reduces the amount of waste sent to landfills and helps to conserve natural resources.
The equipment is also crucial in ensuring that recycled materials are clean and pure, which is essential for their use in various applications.
The shredder blade is forged, annealed, heat-treated, tempered and insulated, on-line cutting and fine grinding.
Gearbox adopts steel welding precision High, good contact, low voice long lasting.
Power surging,Strong power comes from a good motor,Durable,Worry-free quality, long-lasting operationMute and low noise,Tai Chi turbine impeller rotates,Can effectively reduce noise.
Selected hard alloy powder, high temperature after precision molding
| Parameters | Model OPS-400 |
| Motor | 4KW |
| Gearbox | JL3#-12 |
| Input rotation | 12rpm |
| Input torque | 2919Nm |
| Shaft | Φ60 |
| Blade | Φ180*15,9CrSi |
| Blade nos | 26pcs |
| Inlet size | 600*500*300mm |
| Outlet width | 420mm |
| Outlet height to floor | 200mm |
| Overall size | 1160*600*1450mm |
| G.W | ≈500kg |
| Capacity: | 110-130kg/h |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
Machine features:
The double-shaft (plastic) shredder is composed of a shredding blade set, a load-bearing box, a box bracket, a feeding system, a power system, and an electric control system.
The outer frame of the combined structure is precisely machined from extra-thick plates, the powerful rotating shaft of the large-angle hexagonal column, and the large-diameter solid input hopper, so large-scale raw materials can be put in with confidence; low-speed operation, low noise, and less dust; in thickness, shape, arrangement sequence, etc.
In terms of design and processing, a unique rotary knife has strong shearing force, sharp blade, and can be broken with high efficiency; the knife is made of special alloy steel, strong and durable; low transmission speed, low noise, large torque, equipped with mechanical and electrical overload protection; PLC Control, when the processed objects are too large and too large, it is equipped with forward and reverse operation and shutdown functions to protect the body and ensure safe use.
