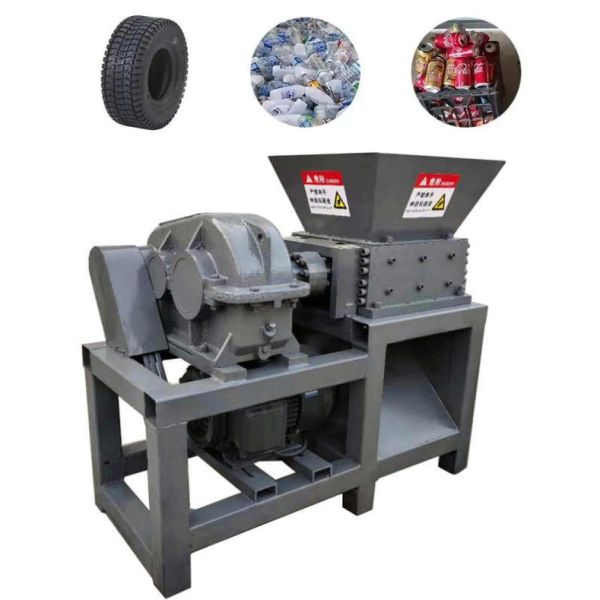

Twin-Shaft Plastic Shredding Blade Hard Film Mini Portable Shredder
Product description:
The mini shredder machines are designed to handle a wide range of waste materials, including plastic bags, containers, and films, as well as rubber tires and drums. The machines use high-speed rotating shredding blades to reduce the waste materials to a consistent size, which can then be used in various applications, such as new product manufacturing or as a filler material.
The mini shredder machines are also efficient and easy to use. They require a low amount of power and can be operated by a single operator. The machines are compact in size, making them easy to store and transport.
In addition to recycling waste materials, the mini shredder machines also help to reduce the amount of solid waste sent to landfills. By reusing these materials, we can help to conserve our natural resources and reduce the environmental impact of waste disposal.
Overall, solid waste plastic, drum rubber, and tire recycling mini shredder machines are an important tool in our efforts to promote sustainability and environmental responsibility.
The shredder blade is forged, annealed, heat-treated, tempered and insulated, on-line cutting and fine grinding.
Gearbox adopts steel welding precision High, good contact, low voice long lasting.
| Parameters | Model OPS-400 |
| Motor | 4KW |
| Gearbox | JL3#-12 |
| Input rotation | 12rpm |
| Input torque | 2919Nm |
| Shaft | Φ60 |
| Blade | Φ180*15,9CrSi |
| Blade nos | 26pcs |
| Inlet size | 600*500*300mm |
| Outlet width | 420mm |
| Outlet height to floor | 200mm |
| Overall size | 1160*600*1450mm |
| G.W | ≈500kg |
| Capacity: | 110-130kg/h |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
Features:
The working principle of the plastic shredder is to shred plastic waste into small pieces or fine pieces by rotating and tearing the blades. When the motor starts, the blade begins to rotate, placing the plastic waste into the shredder's feed port.
There are fixed blades and movable blades in the feed opening, and the two cooperate with each other to generate tearing force. After the plastic waste is torn into small pieces by the blades, the blocks are separated and discharged from the machine with the help of the filter inside the machine. During the whole process, the plastic waste continuously interacts with the blade to achieve precise and precise shredding.
Key points for use and maintenance:
It vary according to machine type and working conditions. General considerations are:
1. Before starting, the transmission wheel should be moved manually for one or two turns. Only after confirming that the movement is flexible can the machine be started. Feed the material after the crusher is operating normally.
2. Before stopping operation, you should stop feeding materials and drain out the materials in the machine, and then cut off the power of the motor.
3. Pay attention to the temperature of the bearing during operation to ensure that the bearing maintains good lubrication status, and pay attention to whether there are any abnormalities in sound and vibration. When abnormal conditions are found, stop the vehicle and check whether it is stuck by non-breakable objects or whether the machine parts are damaged.
WORKING FIELD
Quality & Certificates
Product Tags:
|
|
Mini Portable Plastic Shredder Machine Twin Shaft For Blade Hard Film Images
|
